5 Leads Snap - ECG Leadwires

5 Leads SnapShop at American Hospital Supply Free Shipping Orders > $50

Free Shipping on Orders $50+

Quality Guaranteed

5 Leads Snap - ECG Leadwires

SKU:
L5-90S0
$29.00

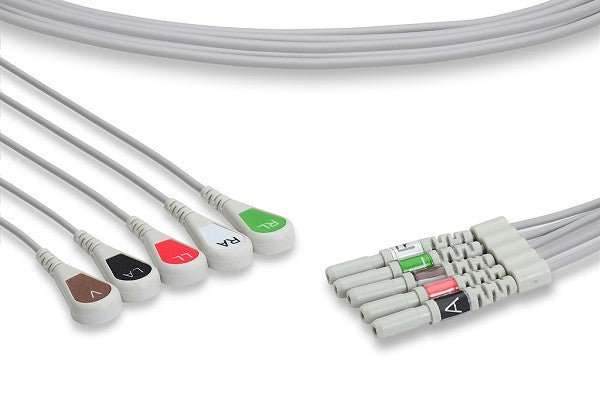

The ECG Leadwire is an innovative single-patient cable and lead wire solution that helps minimize the danger of hazardous microorganisms causing cross-contamination. The superconducting welding technique ensures that the cable connector is appropriately welded and does not fall apart. In addition, the lead wires can be applied quickly and easily thanks to color-coded snaps and grabbers. For care transitions, reusable lead wires can assist speed up the process by helping patients to wear only one lead wire set throughout their hospitalization. These universal ECG wires come in various lead configurations, including three, four, five, six, and a V-lead.

OEM Part Number Cross References

  • AMC LW-2090029/5A
  • Conmed RA24-05 (24" length)
  • Covidien > Kendall 31244349A (18 inches), 31245189A (24 inches)
  • Curbell LW-2090024/5A, LW-2090040/5A
  • Mindray > Datascope 012-0285-11 (24" length), 0012-00-0622-05
  • RPI LKM029 (24 inch), LKM030 (40 inch)
  • Sage L11-05-29S
  • Spacelabs 012-0285-00, 012-0285-01, 012-0605-00
  • Tenacore 20900-24-5A
  • Welch Allyn 008-0322-00

Compatible Models

Manufacturer

Model

AAMI

All

ATL

800, 800 Plus, 800Plus, Apogee, CX ATL Ultrasound, CX200, CX400, HDI 9/200, HDI 9/2000, Interspec Cardiology XL, Mark IV, Mark Vii, Ultramark 4/5/7/9

Abbott

EX-50, Lifecare 5100, Lifecare 5200

Advanced Instrumentations

PM-1000, PM-1000EX

American Optical

26125, 33167, 5260, 5330, Pulsar 4

Arrow

AutoCAT2

Carewell

CPM-8000

Conmed

90347

Contec

CMS 6800, CMS 9000, TLC9803

Covidien > Nellcor

C-LOCK, N-1000, N-200, N-250, NPB-3900, NPB-4000

Criticare

1100, 2200, 504US, 504USP, 506, 507, 507E, 507ELC2, 507S, 508, 602-4B, 602-4USP, 8100, 8100E, 8100EP, Poet 2, Scholar, nCompass, nGenuity 8100E

DIN Style

All

DRE

ASM 6000, Trax, Vida, Waveline, Waveline EZ MAX

Datex Ohmeda

Aestiva/5, E-PRESTN, M-PRESTN, Unity, enGuard CM5

Digicare

LW600

Draeger > Air Shields

HRRM-71-1, HRRM-71-2, II, III, Porta-Fib I, Porta-Fib II, Porta-Fib III, System 5 (New), System 6 (Neonatal)

Draeger

Narkomed 6400, Vitalert 2000, Vitalert 3000

Edan

M50, M8, M80, M8A, M8B, M9, M9A

GE Healthcare > Corometrics

128, 556

GE Healthcare > Critikon > Dinamap

8100T, 8700 Series, 8700/9700, 9700 Series, Carescape B450, Carescape B650, Carescape B850, MPS Select, Pro 1000, Procare B40

GE Healthcare > Marquette

Dash 1000, Dash 2000, Dash 2500, Dash 3000, Dash 4000, Dash 5000, Dash PRO 2000, Dash PRO 3000, Dash PRO 4000, Eagle, Eagle Systems, MAC-Lab, PDM Module, Responder 2000, Responder 3000, Solar 3000, Solar 8000, Solar 9500, Tram 100, Tram 200, Tram 300, Tram 400, Tram 451, Tram 500, Tram 600, Tram 800, Unity Systems

GE Healthcare

Logiq 5, Logiq 7, Vivid 7, Vivid S5, Vivid S6, Vivid S60, Vivid S60N, Vivid S70, Vivid S70N, Vivid T8, Vivid e9, Vivid e90, Vivid e95, Vivid i, Vivid iq, Vivid iq 4D, Vivid iq Premium, Vivid q

Goldway

G40, UT4000A, UT4000Apro, UT4000B, UT4000C, UT4000F, UT4000F Pro, UT4800, UT6000A, UT6000F

Guthan

1000

Infinium

Infitron II, Mira, Omni, Omni II, Vega

Interspec (Irex) (JandJ)

Cardiology XL, Mark IV, Mark Vii, Ultramark 4, Ultramark 4 Plus, Ultramark 5, Ultramark 7, Ultramark 9

Invivo

101, 102, 200, 300, 360SL, 450SL, 521A, Escort 100, Escort 101, Escort 102, Escort 200, Escort 300, Millennia 3500, PortaPak 1000, PortaPak 80, PortaPak 90, PortaPak 90/1000, Prism

Ivy Biomedical

101, 101 (before 1989), 3000, 402, 700, 7800, Cardiac Trigger Monitor 3150

Kontron

7000, 7135, 7135B, 7141, 7210, 7250, 7251, K2000, KAAT, Kolormon, Micromon, Minimon, Supermon, Vitalmon

LSI

261, LS5

Mediana

YM6000

Midmark > Cardell

9403V, 9405, MAX-12 Duo HD, Max-1

Mindray > Datascope

MEC 1000, MEC 1200, MEC 200, MEC 2000, PM 7000, PM 8000, PM 9000

Nihon Kohden

7102A, BSM-7102A, BSM-7300A, BSM-8108A, BSM-8301A, BSM-8302A, BSM-8500A, BSM-8502A, BSM-8800A, Life Scope 12, Life Scope 6, Life Scope 7, Life Scope 8, Life Scope 9, MU-831RA, OEC-6102A (s/n>20156), OEC-6105A (s/n>20226), OEC-7102A, OEC-8108A, TEC 5531E, TEC-5200A (s/n>20421), TEC-7100A, TEC-7200A, TEC-7300A

Novametrix

902, 903, 910, Life Defense 1

Omron > Colin

BP-308, BP-408, CBM3000, M20, M30, MS20

PPG

Guardian 1001, N1001

PaceTech

2100, 2200, 4000, 4100, MiniMax 4000CL, Minipack 300, Minipack 3000, Minipack 3000/3100, Minipack 3100, Modular/4100CL, Vitalmax 2100, Vitalmax 2200, Vitalmax 4000, Vitalmax 4000 Modular, Vitalmax 4000CL, Vitalmax 4100, Vitalmax 4100CL, Vitalmax 800 Plus

Philips

M3921A A1, M3923A A1, M3925A A1, M3927A A3, M3929A A3, iE33 xMatrix Ultrasound CX50

Skanray > Larsen and Toubro

Cosmic, Galaxy, Planet, Planet 50, Star 50, Star 55, Stellar P

Smiths Medical > BCI

1301, 3101, 3404, 6100, 6200, 9100, 9200, Advisor, Autocorr, Autocorr: Surgivet

Spacelabs

400, 500, 600, 67112, 900, 90300, 90303, 90303B, 90308, 90341, 90400, 90408, 90425, 90428, 90431, 90432, 90470, 90600, 90603A, 90700, 90701, 90721, 90724, AriaTele, Medic 3, Medic 4, Medic 5, Medic 6, PC Bedside, PCMS, Series 500, Series 600, Series 900, TEK-208, TEK-208/408/511/512/514/521, TEK-408, TEK-413, TEK-414, TEK-511, TEK-512, TEK-514, TEK-5214045

Stryker > Medtronic > Physio Control

1440/R, Lifepak 10, Lifepak 5, Lifepak 6, Lifepak 6S, Lifepak 7, Lifepak 8, Lifepak 9, VSM-1ESF, VSM-2, VSM-2ESF, VSM-3

Tektronix

4045 Defib/208/400/500 Series

Welch Allyn

1500, Atlas, Atlas 6200 Series, PIC 30, PIC 40, PIC 50, Propaq 100 Series, Propaq 200 Series, Propaq 206 EMPSC, Propaq CS, Propaq Encore, Propaq LT, Ultra Smart

Zoll

D900, E Series, M Series, PD1200, PD1400, PD1600, PD1700, PD2000, R Series

Specifications:

Manufacturer

Cables and Sensors

OEM Part Numbers (Cross References)

·        AMC LW-2090029/5A

·        Conmed RA24-05 (24" length)

·        Covidien > Kendall 31244349A (18 inches), 31245189A (24 inches)

·        Curbell LW-2090024/5A, LW-2090040/5A

·        Mindray > Datascope 012-0285-11 (24" length), 0012-00-0622-05

·        RPI LKM029 (24 inch), LKM030 (40 inch)

·        Sage L11-05-29S

·        Spacelabs 012-0285-00, 012-0285-01, 012-0605-00

·        Tenacore 20900-24-5A

·        Welch Allyn 008-0322-00

Application

ECG Cables

Certifications

FDA, CE, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant

Connector Distal

Din-style

Connector Proximal

Snap

Cable Material

TPU Jacket

Lead Cable Color

Gray

Lead Cable Diameter

2.6 mm

Lead Cable Length Limb

3 ft

Lead Cable Length V

3 ft

Lead Color Coding

AHA

Lead Number

5

Latex-free

Yes

Packaging Type

Bag

Packaging Unit

1

Sterile

No

Suitable Patient Size

Adult/Pediatric

Warranty

6 months

Weight

0.3lb
