VFC 400® Vaccine Monitoring Data Logger Kit


SKU:
VFC400-VMK
$155.00

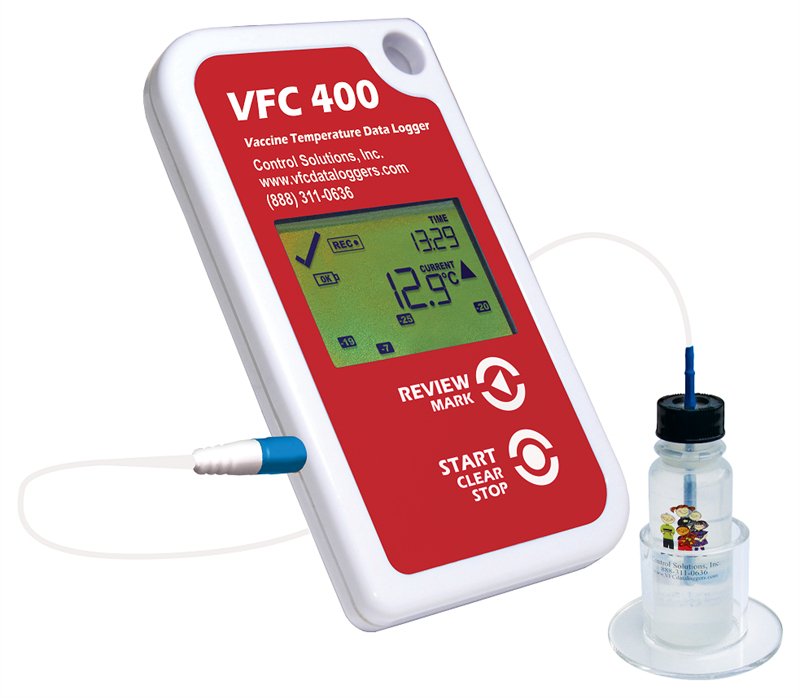

The VFC400 data logger from LogTag is a reliable, compliant monitoring device to ensure your vaccines are maintained. This kit measures and stores up to 15,905 temperature readings from an external probe. The display is designed to show ‘at a glance’ if temperature excursions have occurred during the current day and up to the previous 29 days. The display also shows the current temperature reading, the current time, recording status and battery status. The alarm is triggered if temperature readings are outside pre-set alarm limits. The status indicator changes from a check mark to an X and the audible alarm will sound. From the display you can review the minimum and maximum temperatures for each day the VFC 400® has been logging up to 30 days. The VFC 400® resets the min/max temperature at midnight every night and puts an inspection mark on the chart indicating the min/max has been checked. Requires Docking Station (sold separately).

Note: Device must be mailed in for recalibration

VFC 400® Vaccine Temperature Monitoring Kit includes:

  • VFC 400® Data Logger
  • (1) (Fridge/Freezer) NIST Traceable Certificate of Calibration, compliant to ISO/IEC 17025:2017
  • (1) 3” Stainless , 1/8”OD Probe, with 5’ senor cable P/N SSP-0615
  • (1) High Density plastic (shatter proof) glycol buffer bottle P/N SPB1019
  • (1) Acrylic stand P/N AS1031
  • (1) Installation/Mounting Kit (includes wall mounting bracket) P/N IMK1015
  • (1) Extra replaceable battery
  • FREE installation instructions and Webinar training upon request
  • 2 Year warranty

Specifications

Weight 0.75 lbs
Dimensions 4 × 9 × 9 in
Probe Length

10′, 5′

Brand

LogTag

Accuracy

Calibrated accuracy of ±0.3 Deg C from +40 to -40°C.

Alarming

Audible and visual alarm for out-of-range temperatures.

Display

Displays low battery indicator, current temperature, minimum and maximum temperature, alarm, duration of alarm, time, recording, stopped, and summary of days collected.

Connectivity

USB

Certification

Certificate of Calibration NIST traceable, compliant to ISO 17025:2017.

Function

Monitoring, Temperature, Vaccine

Industry

Healthcare

Temperature Range

-40°C to 0°C, 0°C to 40°C, 40°C to 80°C

Product Model

VFC400

Capabilities

Temperature, Vaccines, VFC Compliant

Recording Capacity

Memory storage of 15,905 readings.

Logging Rate

User programmable logging rate from every 30 seconds to hourly.

Remote Probe

Removable remote probe mounted in a shatter proof bottle in glycol solution.

Sensor Cable Length

Standard 5’ long (optional 10’ length is available).

Download time

Typically less than 10 seconds.

Battery life

Typically 1 year of operation. NOTE: Typical battery life assumes 6 minute logging, day statistics are reviewed on the display no more than once daily for no longer than 30 seconds each time. Download data monthly. NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible.

Power Source

3V CR2032 (LiMnO2) coin cell battery, user replaceable.

Connection Interface

Requires docking station
